<properties>

A properties table describes the properties of a thing, such as an object, part, or category. Each property can include the type, value, and a description.

Usage information

A properties table typically is represented as a simple table with a maximum of three columns. The first column is for the property type, the second column can contain a value or values for the property, and the third column can contain a description.

An optional header row can provide labels for the columns, if an author does not want to use the default labels that might be provided by stylesheets.

Rendering expectations

If a properties table does not contain a header row, processors typically auto-generate labels for the columns in the properties table. The text for the labels is specified in stylesheets.

Specialization hierarchy

The <properties> element is specialized from <simpletable>. It is defined in the reference module.

Attributes

The following attributes are available on this element: universal attributes, display attributes, and simpletable attributes.

Examples

This section contains examples of how the <properties> element can be used.

Figure 1. Simple properties table

The following code sample shows a <properties> element that describes information about motor oil types:

<properties>
  <prophead>
    <proptypehd>Oil type</proptypehd>
    <propvaluehd>Oil brand</propvaluehd>
    <propdeschd>Appropriate use</propdeschd>
  </prophead>
  <property>
    <proptype>Primary oil</proptype>
    <propvalue>A1X</propvalue>
    <propdesc>One-cylinder engines</propdesc>
  </property>
  <property>
    <proptype>Secondary oil</proptype>
    <propvalue>B2Z</propvalue>
    <propdesc>Two-cylinder engines</propdesc>
  </property>
</properties>

The properties table might be rendered as follows:



Figure 2. Properties table with spanned cells

The following code sample shows a properties table with spanned cells:

<properties>
  <prophead>
    <proptypehd>Visual element</proptypehd>
    <propvaluehd>Value</propvaluehd>
    <propdeschd>What it does</propdeschd>
  </prophead>
  <property>
    <proptype rowspan="3">Color</proptype>
    <propvalue>Red</propvalue>
    <propdesc>Indicates an error</propdesc>
  </property>
  <property>
    <propvalue>Green</propvalue>
    <propdesc>Indicates that conditions are good</propdesc>
  </property>
  <property>
    <propvalue>Yellow</propvalue>
    <propdesc>Indicates that a problem might exist</propdesc>
  </property>
  <property>
    <proptype>Shape</proptype>
    <propvalue>Circle, square, or triangle</propvalue>
    <propdesc>Use to add contrast and depth</propdesc>
  </property>
</properties>

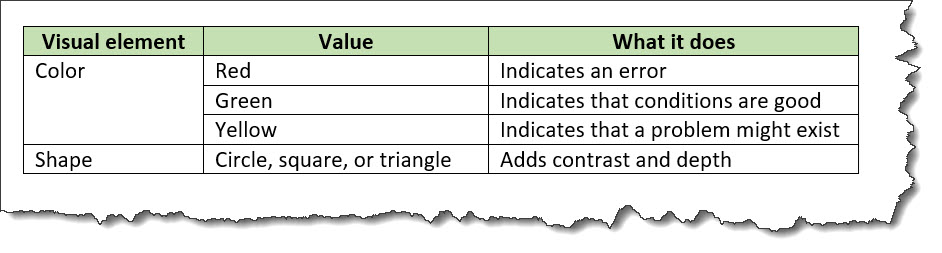

The properties table might be rendered as follows:
